Our Products

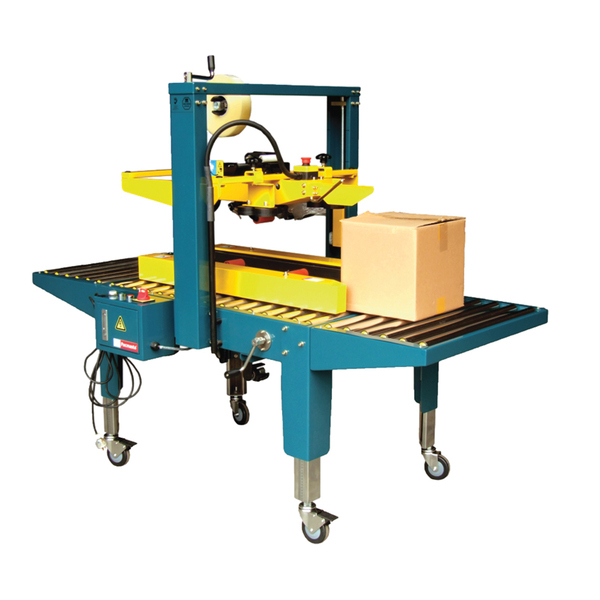

Sealing MachineCARTON SEALER
| Model | SP-102 TU (Standard Carton) |
|---|---|
| Power Supply | 1 Phase 110V/220V/240V |
| Packing Size | Max.: L x W500 x H600 mm Min.: L150 x W170 x H110 mm |
| Tape Width | 50mm (2") or 76mm (3") |
| Working Table Height | 570-770mm (Adjustable) |
| Sealing Capacity | 20 Carton per minute (Carton: L500mm, Power: 60HZ) |
| Dimensions (LxWxH)(mm) | 1052x755x1430 (withouht optional extensive working table) |
| Net Weight (kg) | 133/td> |

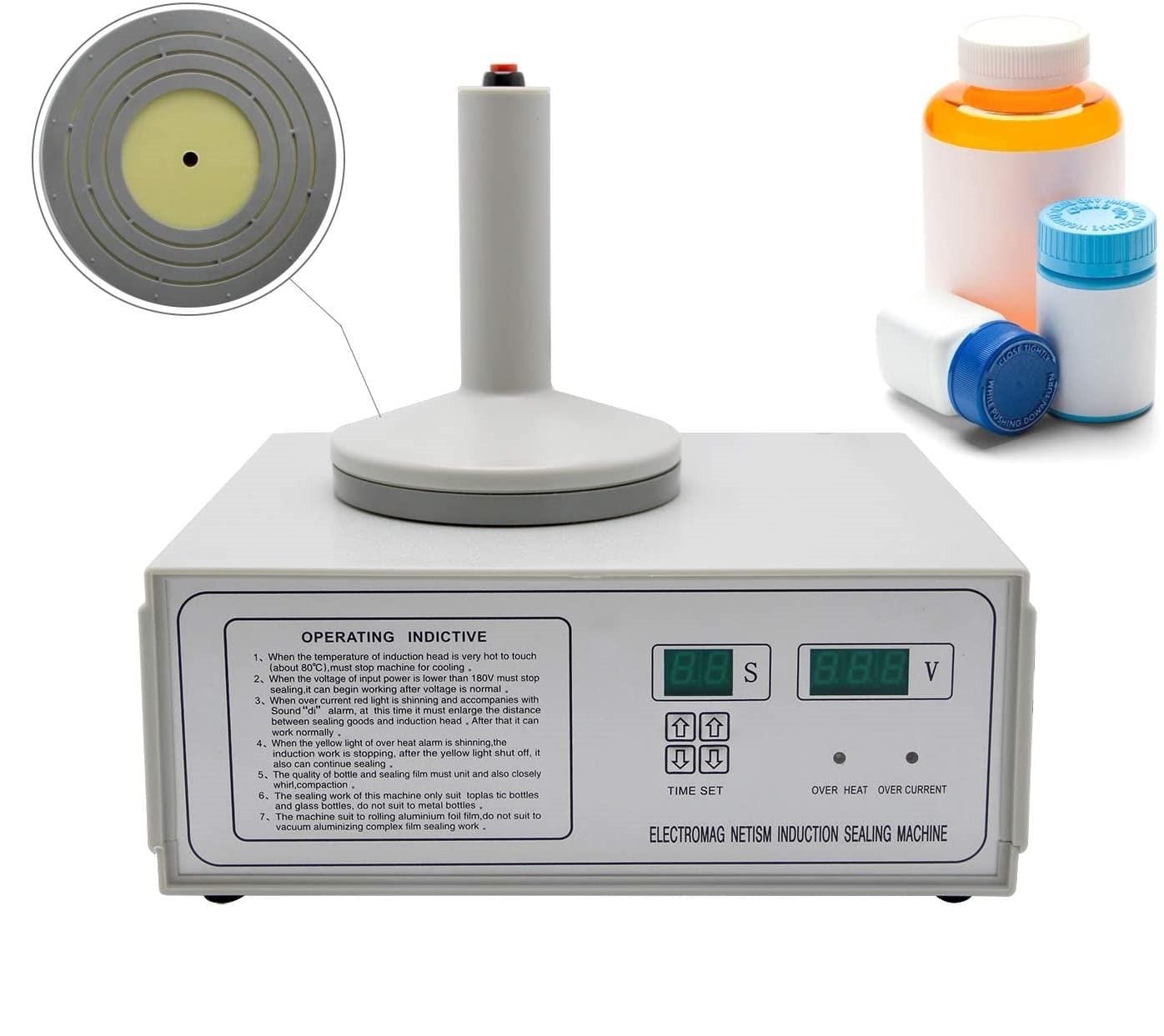

ELECTRO MAGNETIC INDUCTION CAPPER
| Model | SPIS-100 (Manual Model) |
|---|---|
| Voltage(V/Hz) | AC 220/50 |
| Power(W) | 500 |
| Heal diameter (mm) | 20-135 |
| Delivering speed | N/A |
| Vessel height | Absoluteness |
| Dimension (LxWxH) (mm) | 340×290×150 |
| Weight (kg) | 5 |
| Capacity | 0-50 pc. / min |

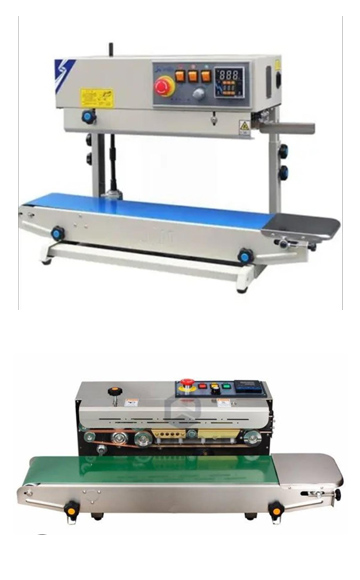

CONTINUOUS BAND SEALER
| Model | FRB 770 II (VERTICAL, MS/SS BODY) |
FRB 770 1 (HORIZONTAL, MS/SS BODY) |
|---|---|---|
| Voltage (V/Hz) | AC 220/50Hz | AC 220/50Hz |
| Power (kw) | 50W | 50W |
| Sealing Power | 300 X 2 | 300 X 2 |
| Sealing Speed (m/min.) | 0-12 M/MIM | 0-12(0-16) |
| Sealing Width (mm) | 10MM | 10MM |
| Distance from the sealing center to the conveying table (mm) | 10-40MM | 20-40MM |
| Temperature range (Deg.C) | 0-300 C | 0~300 c |
| Conveyor size (L x W) mm | 840 X 153MM | 840 X 180MM |
| Conveyor load for single Bag | 1Kg | 1Kg |
| Overall Conveyor Loading (Kg) | 3 | <3 |
| External Dimensions LXWXH | 840 X 380 X 320mm | 840 X 380 X 320mm |
| Net Weight (Kg) | 28Kgs | 23Kgs |

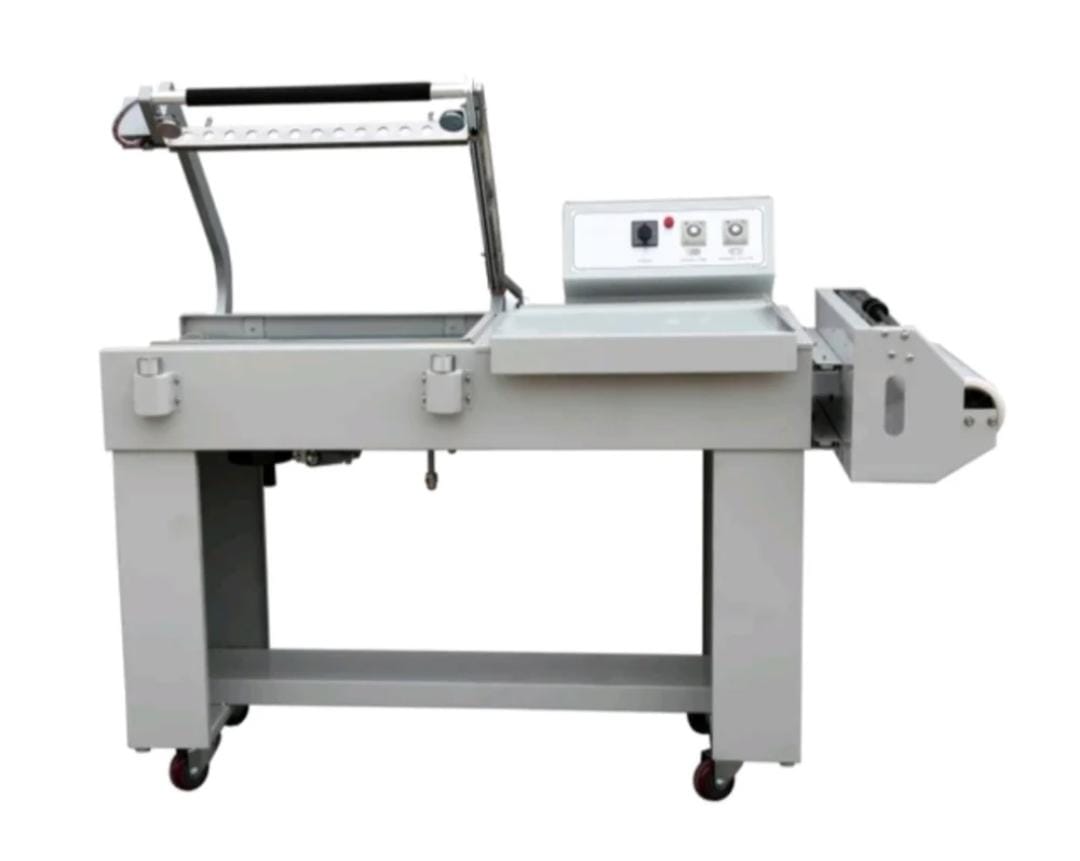

SEMI AUTOMATIC L -SEALER
| Model | SPLS-5045S | SPLS-5045P |
|---|---|---|
| Machine Type | Magnetic | Pneumatic |
| Voltage (V/Hz) | AC 220/50 | AC 220/50 |
| Air Pressure Required (kg/cm3) | N/A | 6-8 |
| Power (kw) | 1.2 | 1.2 |
| Packaging speed (Pcs/h) | 800-1200 | 800-1200 |
| Max packaging dimension (LxWxH) (mm) | 450x400x300 | W+H<450, W<400 |
| Max sealing dimension (LxW) (mm) | 500x450 | 500x450 |
| Dimension (LxWxH) (mm) | 1560x757x1040 | 1560x757x1040 |
| Net Weight (kg) | 110 | 135 |
| Body | Powder coated(M.S. Type) | Powder coated(M.S. Type) |

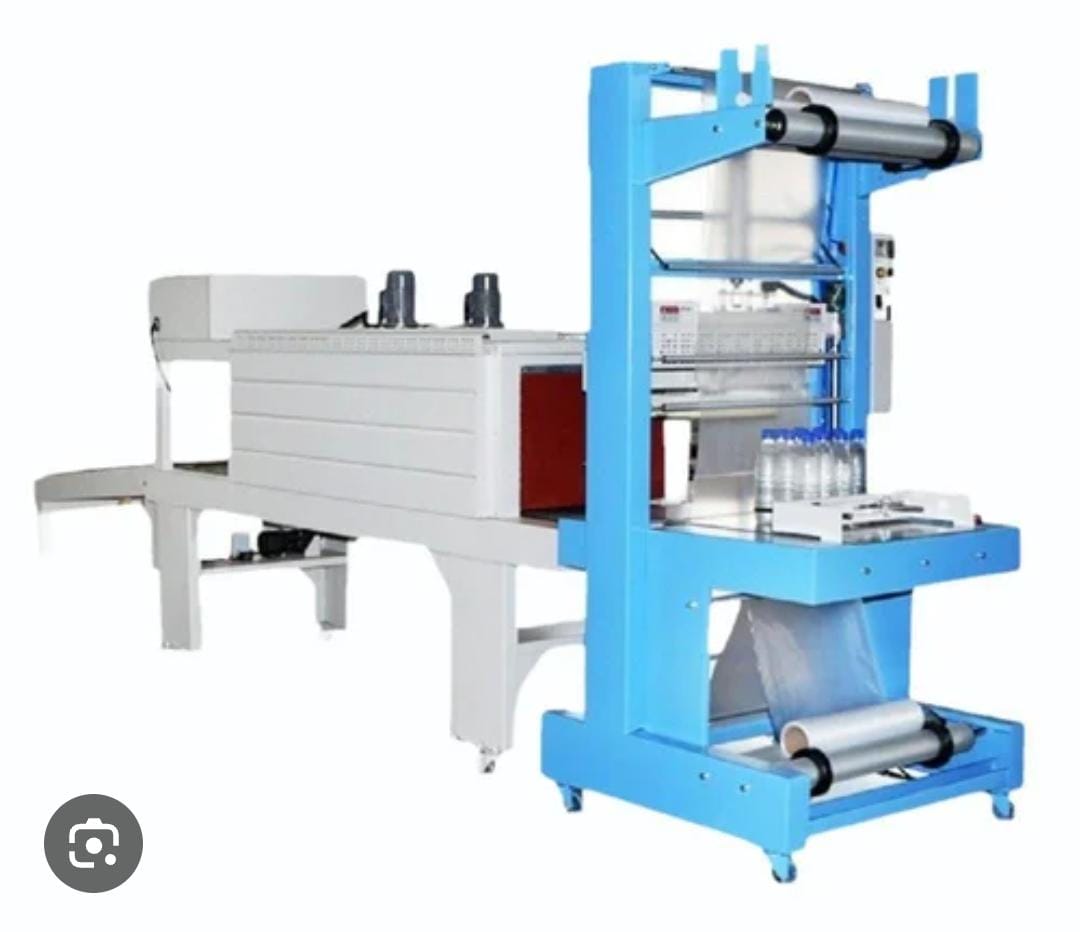

SEMI AUTOMATIC WEB SEALER WITH SHRINK TUNNEL
| Model | SPWS -6540 | SP 5540 L |
|---|---|---|
| Voltage (V/Hz) | 300/50 3 phase | 300/50 3 phase |
| Power Consumption (KW) | 1.5 | 21 |
| Packing Speed (pcs/min) | 0-12 | 0-10 |
| Max Packing dimension (L x W x H) (mm) | 500 x 290 x 380 | 1450 x 550 x 400 |
| Max sealing length (mm) | 650 | - |
| Height of conveyor (mm) | 800+50 (Adjustable) | - |
| Working air pressure (Kgf/m2) | 6 | - |
| Dimension (LxWxH) (mm) | 1370 x 920 x 1800 | 2550 x 850 x 1500 |
| Conveyor Loading(kg) | - | 40 |
| Heating Time (Minutes) | - | 10 |
| Cooling Time (Minutes) | - | 15 |
| Weight (kg) | 300 | 300 |
ELECTRO MAGNETIC INDUCTION CAPPER
| Model | FS-200C/FS-300C/ FS-400C |
|---|---|
| Voltage (V/Hz) | AC 220/50 |
| Power(W) | 500 |
| Impulse Power (W) | 260/430/600 |
| Sealing Length (mm) /td> | 200/300/400 |
| Sealing Width (mm) | 2 |
| Max. Seal Thickness (mm) | 0.2 |
| Heat Time (s) | 0.2-1.3 |
| External Dimensions(LxWxH) (mm) | 325x75x225 440x83x255 540x85x280 |
| Net Weight (kg) | 2.1/3.7/4.4 |
