Model | SP 101 PNT |
---|---|
Strap Width (mm) | 13-19 adjustable |
Strap Thickness (mm) | 1.0-1.5 |
Weight (kg) | 3.8 |
Size (LxWxH) (mm) | 275 |
Tension (kg) | 200 |
Type of Seal | Friction Weld |
Pressuure | 5-7 Bar |
Strap Material | PET / PP |
Battery | N/A |
Net Weight | 3.8 kg |

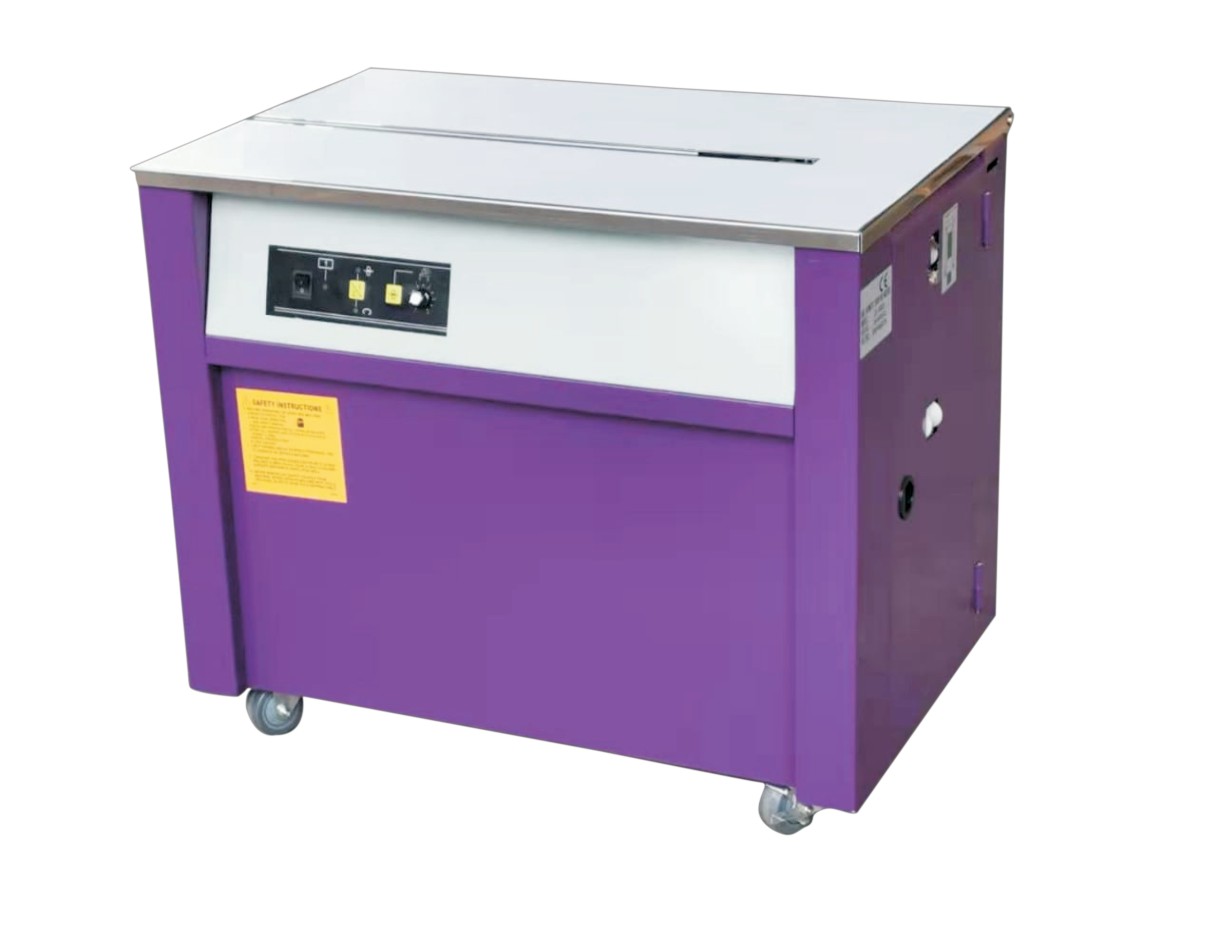

Model | TP-201 |
---|---|
Power supply | 220V/50HZ/1-phase |
PP tape width | 6-15mm |
Motor Winding | Copper |
Body Thickness | 1.5 mm |
SS Top Thickness | 2 mm |
Tension Type | MTD |
Weight | 100kgs |
Dimensions | 895mm (L) x 565mm (W) x 740mm (H) |
Tightness Adjustment | Outside Adjustable |
Drive | Chain Type |
Model | TP-201 |
---|---|
Power supply | 220V/50HZ/1-phase |
PP tape width | 6-15mm |
Motor Winding | Copper |
Body Thickness | 1.5 mm |
SS Top Thickness | 2 mm |
Tension Type | MTD |
Weight | 100kgs |
Dimensions | 895mm (L) x 565mm (W) x 740mm (H) |
Tightness Adjustment | Outside Adjustable |
Drive | Chain Type |
Model | IS-900X |
---|---|
Power supply | 220V/50HZ/1-phase |
PP tape width | 9-15mm |
Motor Winding | Copper |
Body Thickness | 1.2 mm |
SS Top Thickness | 1.5 mm |
Tension Type | Inductor |
Weight | 85kgs |
Dimensions | 895mm (L) x 565mm (W) x 740mm (H) |
Tightness Adjustment | Inside Adjustable (Outside :Optional) |

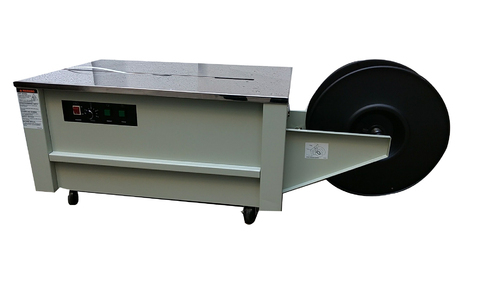

Model | JN-740L |
---|---|
Power supply | 220V/50HZ/1-phase |
PP tape width | 6-15mm |
Motor Winding | Copper(MINGSHIN) |
Body Thickness | 1.5 mm |
SS Top Thickness | 2 mm |
Tension Type | MTD |
Weight | 90kgs |
Dimensions | 1510mm (L) x 565mm (W) x 480mm (H) |
Tightness Adjustment | Outside Adjustable |

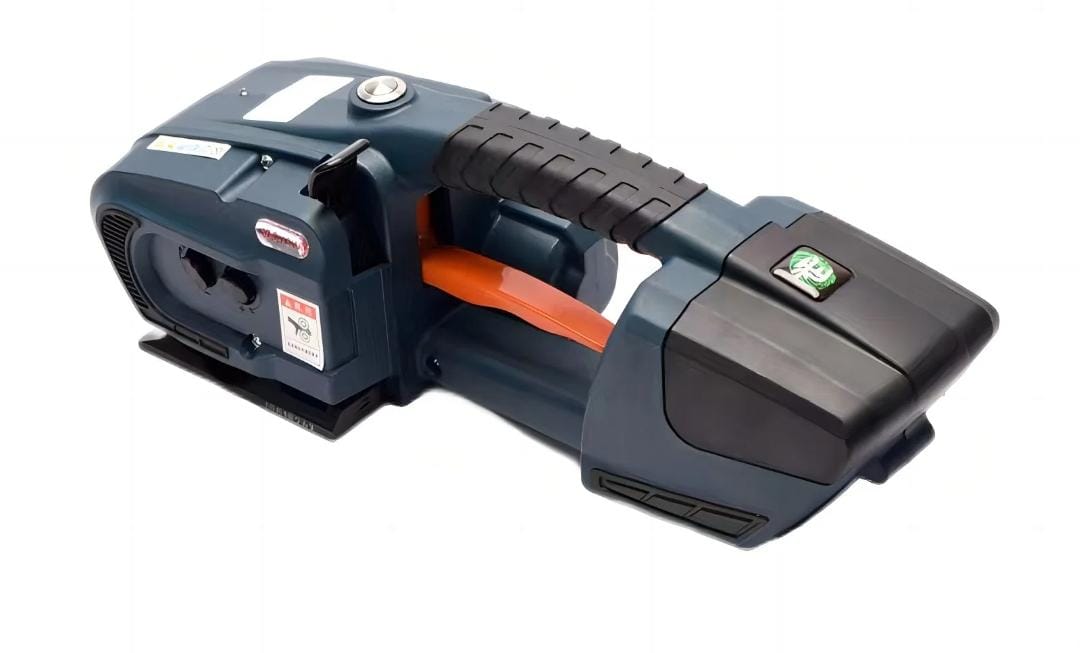

Model | BXT-16 |
---|---|
Dimensions | 360 * 135 * 120mm |
Weight | 3.2KGS |
Applicable Strap | PP/PET Strap |
Strap Thickness | 0.4mm -1.2mm |
Strap Width | 13mm -16mm |
Welding Mold | Friction Welding |
Tension Strength | Up to 280kg |
Maximum Tension | Force2800N |
Battery | 4000maH, 11.1V(DC) |
Charger Voltage | 100-245V(AC), 50-60HZ |
Charge Time | Approximate 90 Minutes |

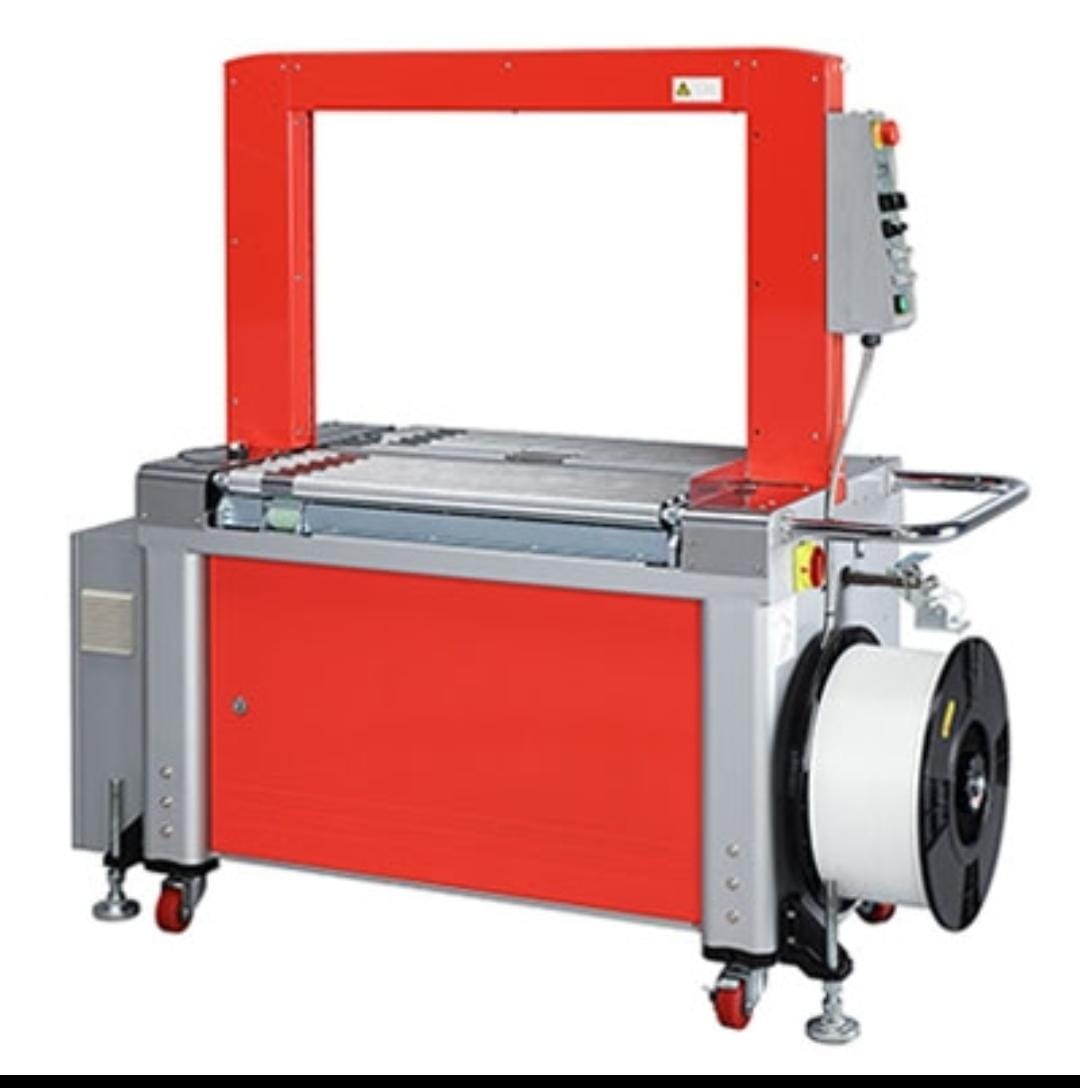

Model | TP-702A |
---|---|
High value-added machine with high strapping speed to meet fast production line | |
Roller-driven table for heavy load packages | |
For 5 mm, 6 mm, 9 mm, or 12 mm PP strapping | |
Robust & compact strapping head, use the latest DC motor direct drive technology | |
Free access to strap guides (patents registered) | |
Waist-high auto strap feeding | |
Waist-high quick coil change | |
Capacity up to 36 packages per minute |

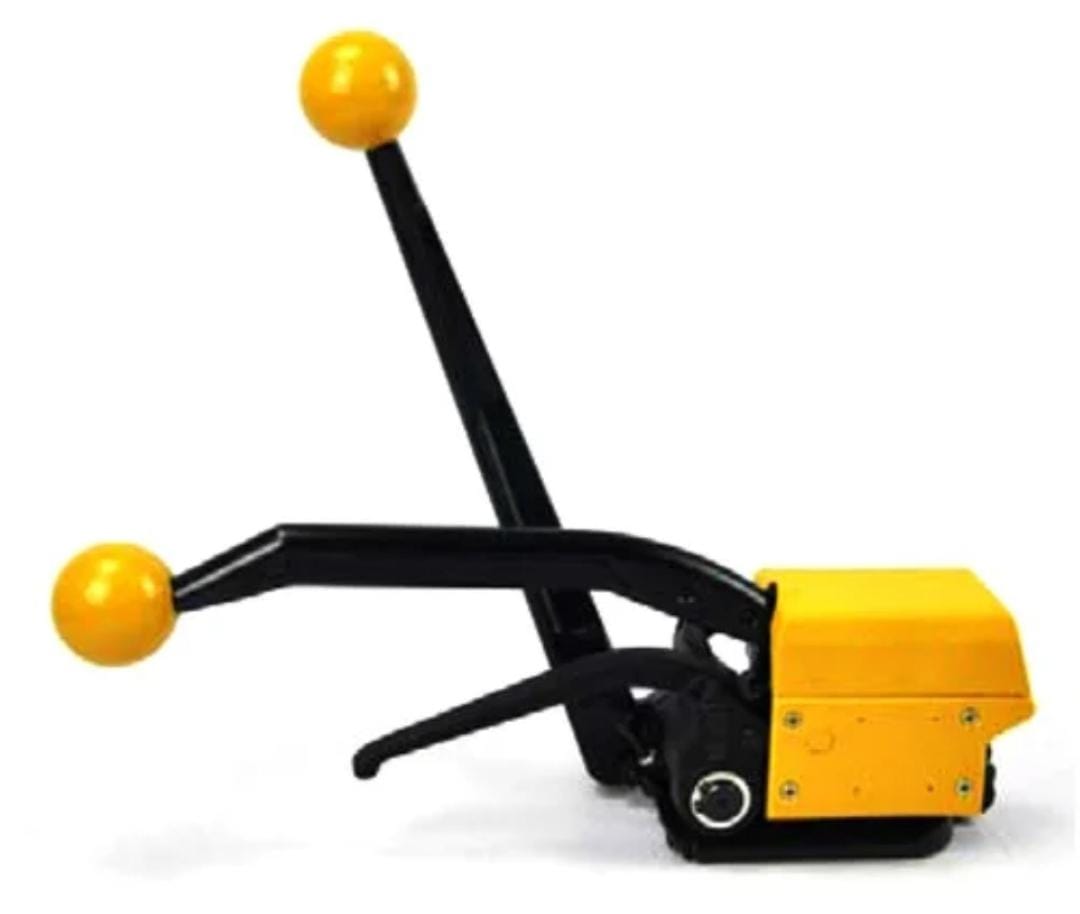

Model | A-333 China Made |
---|---|
Feature | Sealless steel strapping tool. Tensioning Sealing & Cutting all in one. |
Type | Steel Straps |
 Sizes | 12, 16 & 19 mm |
Thickness | Max up to 0.65 |
Make | PackRight |

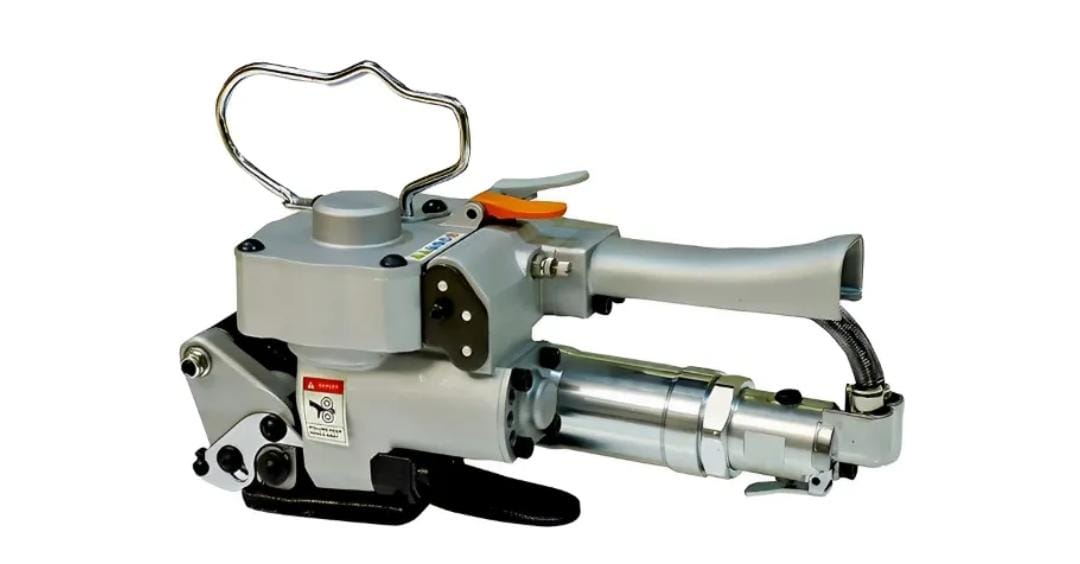

Model | AQD-19 (HEAVY DUTY) |
---|---|
Capacity | 2.5 to 4 seconds |
Weight (kg) | 3.8 Kg |
Strap Material | PET/PP Strap |
Air Consumption | Air pressure: 0.5 to 0.8 MPa |
Strap Size (mm) | 12 mm to 19 mm (AQD 19) |
Strap joint | Friction Welding |
Pressure (Mpa) | 3500 Newton |
Machine Dimension | 280 mm X 160 mm X 180 mm |
Thickness (Millimeter) | 20.5 mm to 1.27 mm 7/19 |
